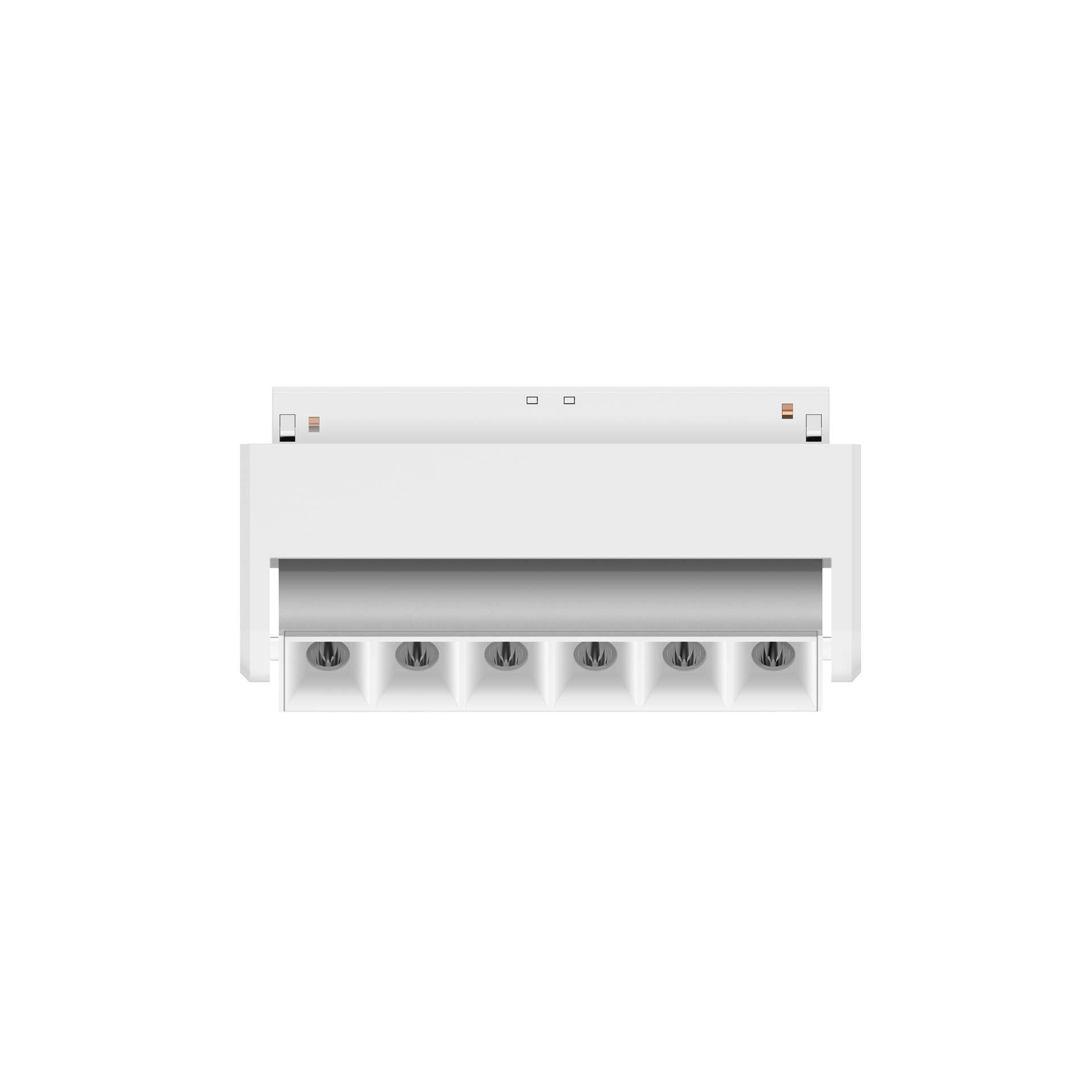

Linea-Q1 LENS XS
The Italian meaning of Linea is €˜line€™ and that is exactly what this 48V linear luminaire of our Q-Line series creates. The Linea-Q1 Lens XS equipped with a micro lens system with three possible beam angles 15°, 30° and 45° creates a stunning and perfect straight line of light with an extremely low glare. Available in black and white housing and two different CCT options.
/
CRI
90
CCT
3000K, 3000K|4000K, 4000K
Chromaticity tolerance
3 MacAdam
Elclass
Class III
Housing material
Aluminum Die Cast
IP rating
IP20
Lifetime
50000h
Light source
930 (3000K / CRI90), 930 (3000K / CRI90)|940 (4000K / CRI90), 940 (4000K / CRI90)
Luminaire color
Black, Black|White, White
Luminaire dimension
162x36mm
Mains voltage
48V
Optic
Reflector
Power supply
Included ON/OFF
System efficiency
65lm/W, 65lm/W | 70lm/W, 70lm/W
System power
10W
Warranty
5Y
Product tags
48V
Light Color CCT
3000, 3000|4000, 4000
Lumen
650 lm, 650 lm|700 lm, 700 lm
-
CRI90
-
CCT3000K, 3000K|4000K, 4000K
-
Chromaticity tolerance3 MacAdam
-
ElclassClass III
-
Housing materialAluminum Die Cast
-
IP ratingIP20
-
Lifetime50000h
-
Light source930 (3000K / CRI90), 930 (3000K / CRI90)|940 (4000K / CRI90), 940 (4000K / CRI90)
-
Luminaire colorBlack, Black|White, White
-
Luminaire dimension162x36mm
-
Mains voltage48V
-
OpticReflector
-
Power supplyIncluded ON/OFF
-
System efficiency65lm/W, 65lm/W | 70lm/W, 70lm/W
-
System power10W
-
Warranty5Y
-
Product tags48V
-
Light Color CCT3000, 3000|4000, 4000
-
Lumen650 lm, 650 lm|700 lm, 700 lm
